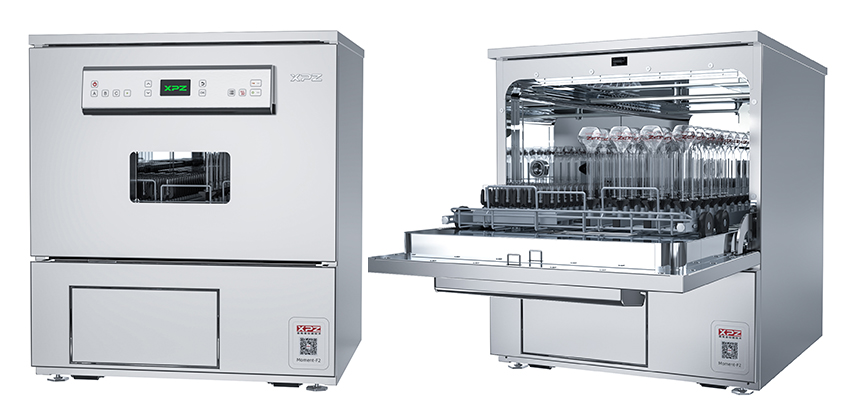

Laboratory Utensil Washer with Integrated Drying and Washing Lab Equipment on The Table–Moment-2/F2

Short Description:

The Moment-2 / F2 laboratory washer can be installed on the lab’s table ,it can be connected with tap water & pure water. The standard process is to use tap water & detergent to do mainly wash, then use Pure water rinsing, it will bring you a convenient and fast cleaning effect. When you have drying requirements for cleaned utensils, please choose Moment-F2.

After-sales Service:Always     Warranty : 1 Year

Structure: Freestanding            Material: Stainless steel

Certification:CE ISO


Product Detail

Product Tags

HANGZHOU ERDONG TECHNOLOGY CO.,LTD.-LOGO

makes cleaning work happier

Designed for laboratory cleaning of standard glassware, suitable for containers made of glass, ceramic, metal, plastic, etc. (e.g., volumetric flasks, sample vials, Erlenmeyer flasks, colorimetric tubes, pipettes, graduated pipettes, test tubes, petri dishes, heart-shaped flasks, beakers, etc.).



 —————Moment-2 / F2—————

01

Basic Data Functional Parameter
Model Moment-2 Moment-F2 Model Moment-2 Moment-F2
Power Supply 220V/380V 220V/380V ITL automatic door Yes Yes
Material Inner Chamber 316L/Shell 304 Inner Chamber 316L/Shell 304 ICA Module Yes Yes
Total Power 5KW/10KW 5KW/10KW Peristaltic Pump 2 2
Heating  Power 4KW/9KW 4KW/9KW Condensing Unit Yes Yes
Drying Power N/A 2KW Custom Program Yes Yes
Washing Temp. 50-93ºC 50-93ºC OLED Screen Yes Yes
Washing Chamber Volume 126L 126L RS232 Printing Interface Yes Yes
Cleaning Procedures 35 35 Conductivity Monitoring Optional Optional
The Layer Number of Cleaning 1 1 Internet of Things Optional Optional
Pump Washing Rate 320L/min 320L/min Dimension(H*W*D)mm 685×612×750mm 685×612×750mm
Weight 100KG 100KG Inner cavity size (H*W*D)mm 402*540*550mm 402*540*550mm



Four key advantages for Full Automatic Laboratory Glassware Washer

四大优势



Why choose XPZ Full Automatic Laboratory Glassware Washer?

→Control System:
1.Equipped with 38 standard programs and 100 customizable settings.

2.Adjustable cleaning time, temperature, and pressure.
3.Minimum cleaning cycle can be completed in under 30 minutes.
Structure:
Inner chamber made of 316L stainless steel,outer shell made of 304 stainless steel,providing corrosion resistance.
二代机
二代机x2
Operation management
1.Wash Start delay function:  the instrument comes with appointment time start & timer start function to improve the customer’s work efficiency.

2. OLED module color display, self-illumination, high contrast, no viewing angle limitation.
3. level password management, which can meet the use of different management rights.
4. Equipment fault self-diagnosis and sound, text prompts.
5. Cleaning data automatic storage function (optional)
6.USB cleaning data export function (optional).
7. Micro printer data printing function (optional).
High cleanliness
1. Importedhigh-efficiency circulating pump in Sweden, the cleaning pressure is stable and reliable;

2. According to the principle of fluid mechanics, the cleaning position is designed to ensure the cleanliness of each item;
3. Optimized design of the rotary spray arm of the flat-mouth nozzle to ensure that the spray is 360° without dead angle coverage;
4. Wash the side of the column obliquely to ensure that the inner wall of the vessel is 360° cleaned;
5. Height-adjustable bracket to ensure effective cleaning of different sizes of vessels;
6. Double water temperature control to ensure the entire cleaning water temperature;
7. The detergent can be set and automatically added;



操作要求 过 循环系统 干燥
1.Power supply: 220-230V single-phase 50Hz or 380-400V three-phase five-wire.
2.Water supply: Municipal tap water and laboratory pure water for rinsing.
3.Power: 4KW/9KW.
1.Inlet coarse filtration prevents particulate matter from entering the chamber.
2.Dual wastewater circulation filtration prevents particles and debris from recirculating.
3.Reverse-flow filtration in the circulation pump extends component lifespan.
1.Variable-frequency circulation speed adjustable from 0-600L/min.
2.Equipped with circulation speed detection and overheating protection.
1.High-efficiency HEPA-filtered compressed air drying system ensures thorough drying of both inner and outer surfaces of glassware.
2.One-touch start for the drying system.
3.Adjustable drying temperature and time.



More features——

01 02
 03  04



Certification:

313373c5011ac66353e2f3b0d1ef271



How does the XPZ Full Automatic Laboratory Glassware Washer clean labware?



→With tap water and pure water (or softened water) as the working medium, using a specific cleaning agent, driven by the circulation pump, the cleaning liquid is directly washed 360 ° inside and outside the vessel by rotating the spray arm and the spray pipe, so as to peel off, emulsify and decompose the remaining substances on the vessel under the action of mechanical and chemical forces; In addition, the cleaning liquid can be automatically heated, and then the utensils can be hot cleaned and disinfected to achieve a better cleaning effect. If the model with drying function is selected, the sample bottle can also be hot air dried after washing to avoid secondary contamination caused by not being removed in time.(This model includes drying.)

lab glassware washer

——-Normal washing procedure

Pre-washing → washing with Alkaline detergent under 80°C → rinse with Acid detergent →rinse with tap water → rinse with pure water→rinse with pure water under 75°C→drying



FAQ:

Q1: Why Choose XPZ ?
We are the main supplier to chinese inspection authorities and chemical enterprises.
Our brand has been spread to many other countries,such as India,UK,Russia,Africa and Europe.
We provide integrated solutions based on customized demand,including product selection,installation and operate training.
Q2:What’s kind of shipment can customer choose?
Usually ship by sea, by air.
We try our best to meet the transportation requirements of customers.
Q3:How to ensure the product quality and after-sales service?
We have CE, ISO quality certificate and etc.
We have the excellent after-sales service and after sales engineer.
Our products have a warranty period.
Q4:Can we visit your factory online?
We are very supportive.
Q5:What kind of payment can customer choose?
T/T,L/C and etc.
