Self-contained fully automatic spray-type laboratory glassware washing machine with drying frequency conversion adjustable Standard basket identification system

Short Description:

Aurora-F2 laboratory glassware washer,can be installed under the laboratory table-board or separately. It can be connected with tap water & pure water. The standard process is to use tap water & detergent to do mainly  wash, then use Pure water rinsing. It will bring you a convenient and fast cleaning effect, when you have drying requirements for cleaned utensils, please choose Aurora-F2.

After-sales Service:Always     Warranty : 1 Year

Structure: Freestanding            Material: Stainless steel

Certification:CE ISO


Product Detail

Product Tags

Product Description

Three levels glassware washer with Modular basket design
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time

Product Description

Product Description:

Aurora-F2laboratory glassware washer,can be installed under the laboratory table-board or separately. It can be connected with tap water & pure water. The standard process is to use tap water & detergent to do mainly  wash, then use Pure water rinsing. It will bring you a convenient and fast cleaning effect, when you have drying requirements for cleaned utensils, please choose Aurora-F2.

Specification:

Dimension (H*W*D) 995*930*765mm
Number of cleaning layers 2 layers
Chamber volume 202L
Circulation pump flow rate 0-600L/min adjustabie
Heating Power 4kw/9kw
Basket identification system Standard
Installation method Free standing
Washing capacity (For example) 25ml Volumetric flask 144 seats
100ml Volumetric flask 84 seats
Sample vials 476 seats
Pipettes vials 476 seats
Petri dishes 168 seats

Packaging&Delivery

Packaging&Delivery

Packaging Details  Wooden Package
Port  Shanghai,China

Automatic Glassware Washer

Features:
1. Can be standardized for cleaning to ensure uniform cleaning results and reduce uncertainties in human operation.
2. Easy to verify and save records for easy traceability management.
3. Reduce staff risk and avoid injury or infection during manual cleaning.
4. Cleaning, disinfection, drying and automatic completion, reducing equipment and labor input, saving costs
——-Normal washing procedure
Pre-washing → washing with Alkaline detergent under 80°C → rinse with Acid detergent →rinse with tap water → rinse with pure water→rinse with pure water under 75°C→drying
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time

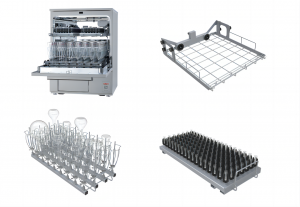

Technological Innovations: Modular basket design
baskets(1) Glory basket(1)

It is divided into upper and lower cleaning baskets. Each layer of the basket is divided into two (left and right )modules. The module is arranged with automatic closing mechanical valve device. It can also be placed on any layer without changing the basket structure.
Importance:
1: More extensive cleaning, can wash more varieties of glasswares
2: There are four seats at the same time in the upper and lower layers, and four modules can be placed at the same time
3: Free combination according different bottles.
4: Cleaning costs decrease
5: Each layer (upper or lower) can be cleaned separately, especially the lower layer, which can be cleaned directly after placing the module

Efficient drying
1.In situ drying system
2. Built-in HEPA high efficiency filter to ensure the cleanliness of dry air;
3. Synchronize the drying water circulation pipeline to avoid the pipeline contamination of the cleaning system;
4. Double temperature control to ensure drying temperature;

Operation management
1.Wash Start delay function: The instrument comes with appointment time start & timer start function to improve the customer’s work efficiency;

2. OLED module color display, self-illumination, high contrast, no viewing angle limitation

4.3 level password management, which can meet the use of different management rights;

5. Equipment fault self-diagnosis and sound, text prompts;

6. Cleaning data automatic storage function (optional);

7.USB cleaning data export function (optional);

8. Micro printer data printing function (optional)
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time

Automatic glassware washer—principle

The main principle of the lab glassware washer is to heat the water and add a special cleaning agent into the professional basket frame pipe through the circulating pump to wash the inner surface of the bottles. At the same time, there are also upper and lower spray arms in the cleaning chamber, which can clean the surrounding surfaces of the utensils.
For different shape of glasswares, it can be placed on different support baskets to ensure better spraying method, spray pressure, spray angle and distance; For different industry applications, can set different cleaning procedures, including different cleaning steps, different cleaning agent composition and concentration, different cleaning water quality, different cleaning temperatures.
198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time

Company Profile

198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time

Hangzhou Xipingzhe Biological Technology Co., Ltd

XPZ is a leading manufacture of laboratory glassware washer,located in hangzhou city,zhejiang province,china.XPZ specializes in research,production and trade the automatic glassware washer which is applied to Bio-pharma,Medical health,Quality inspection environment ,food monitoring,and petrochemical field.

XPZ is committed to help solve all kinds of cleaning problems.We are the main supplier to Chinese inspection authorities and chemical enterprises,meanwhile XPZ brand has been spread to many other countries,like india ,UK,Russia,South Korea,Uganda,the philippinese etc.,XPZ provides integrated solutions based on customized demand,including product selection ,installation and operate training etc.

We will gather more enterprise advantage to provide innovtive products with high quality and excellent service ,to keep our long-term friendship.

Exhibition

198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time

Certifications



198L 2-3 Layer Independent Automatic Laboratory Glassware Washing Machine with Hot Air in-Situ Drying Can Clean 84 100ml Volumetric Flasks at a Time
